Admiral Roll Divider and Admiral Roll Divider Rebuilds

WP Winkler Admiral Divider and Admiral Divider Rebuild, WP Bakery Group USA, Retail, Wholesale and Industrial Bakery Equipment and Food Service Industry Equipment, Shelton, CT USA

The most robust volumetric roll divider available. Frame is welded steel plate construction for superior strength rigidity. This provides the Admiral the ability to operate 24/7 in the most demanding production such as frozen doughs and bagel plants with reliability.

We also can rebuild our Admiral Roll Divider. Please see our slideshow below.

WP Winkler Admiral Divider and Admiral Divider Rebuild, WP Bakery Group USA, Retail, Wholesale and Industrial Bakery Equipment and Food Service Industry Equipment, Shelton, CT USA
WP Winkler Admiral Divider and Admiral Divider Rebuild, WP Bakery Group USA, Retail, Wholesale and Industrial Bakery Equipment and Food Service Industry Equipment, Shelton, CT USA
WP Winkler Admiral Divider and Admiral Divider Rebuild, WP Bakery Group USA, Retail, Wholesale and Industrial Bakery Equipment and Food Service Industry Equipment, Shelton, CT USA
WP Winkler Admiral Divider and Admiral Divider Rebuild, WP Bakery Group USA, Retail, Wholesale and Industrial Bakery Equipment and Food Service Industry Equipment, Shelton, CT USA

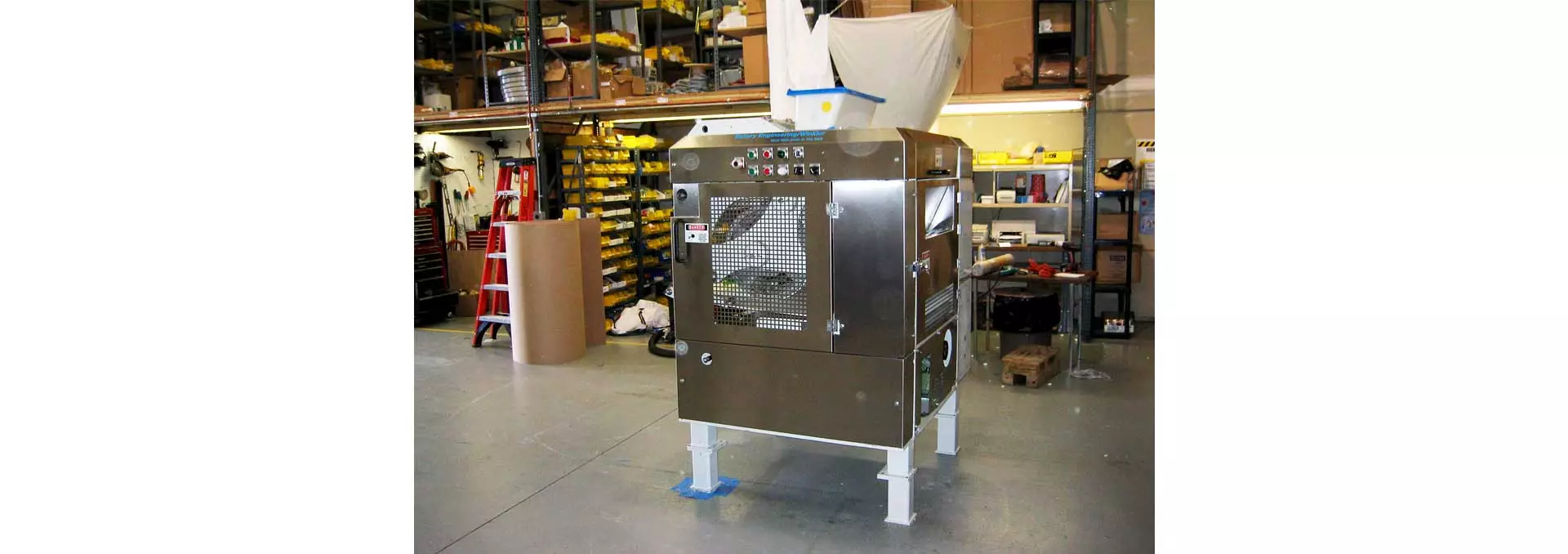

wp-winkler-admiral-rebuild-01
Admiral Roll Divider Rebuild

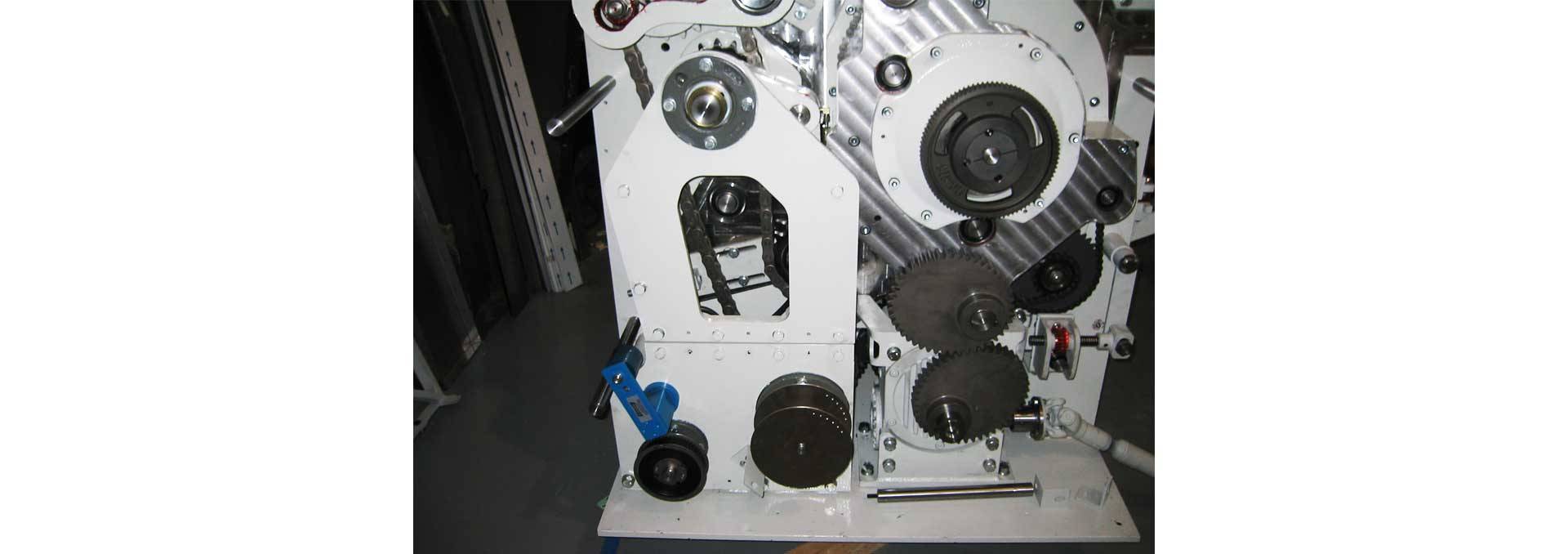

wp-winkler-admiral-rebuild-02
Admiral Roll Divider Rebuild

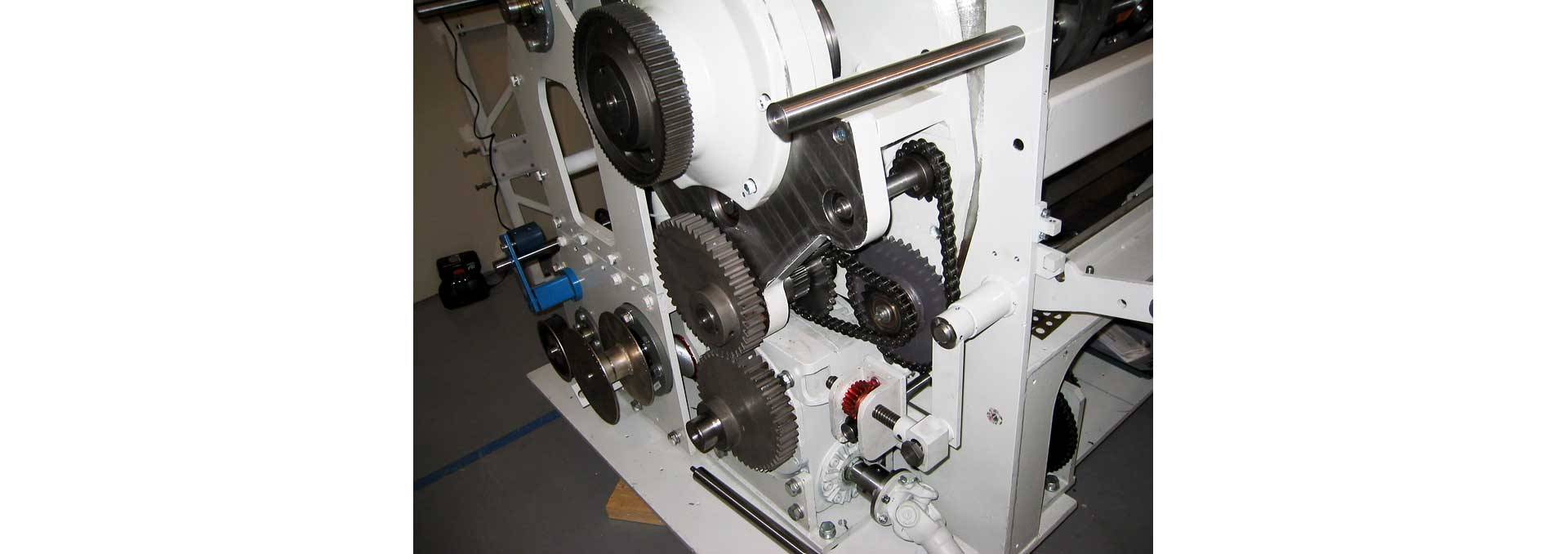

wp-winkler-admiral-rebuild-03
Admiral Roll Divider Rebuild
wp-winkler-admiral-rebuild-04
Admiral Roll Divider Rebuild
previous arrow
next arrow

Features

  • Scaling range of 40 grams to 185 grams
  • Scaling accuracy ± 1 gram below 100 grams, ± 1% of target above 100 grams
  • Maximum scaling rate is 3,000 pieces/lane per hour
  • Welded steel frame painted with durable 2 part epoxy paint
  • Stainless steel bed
  • Stainless steel head
  • Stainless steel knife with brass rails
  • Stainless steel side panels and doors
  • Brass main ram

Products

Product

  • All doughs

Capacity

  • Maximum scaling rate is 3,000 pieces/lane per hour



Added Value

  • Main drive is 5 HP SEW gear motor controlled by VFD
  • Rounding drive motor is 2 HP SEW gear motor controlled by VFD
  • Flour duster motor is SEW gear motor controlled by VFD
  • Stripper roller motor is SEW motor controlled by VFD
  • TEFLON sleeved stripper roller – no scraper required
  • Oiling system is self-contained with fully adjustable flow rates to include quantity, frequency & duration
  • Large diameter rounding drum that permits rounding to be done slower with a longer rounding duration
  • All control wiring terminated to a single junction box in the top of the machine
  • All motor wiring terminated to a separate single junction box in the base of the machine
  • Voltage: 440 volts, 3 phase, 60 Hz – Other voltages available » Control Panel with Allen Bradly HMI & controls
  • 11g stainless steel table for discharge conveyor with UHMW nose bar » Transfer roller for seam control
  • Discharge conveyor with individual modular plastic spreader belts for each lane

Please send me more information on the:

Admiral Roll Divider and Admiral Roll Divider Rebuilds

  • Optional Questions

    These questions are optional but answering them will help us direct your request to the people who can help you the most. (Some questions may not apply to your industry.)

  • By clicking submit below, you consent to allow WP Bakery Group USA to store and process the personal information submitted above to provide you the content requested.
  • This field is for validation purposes and should be left unchanged.

  Admiral Roll Divider Data Sheet (555.1 KiB, 501 hits)
