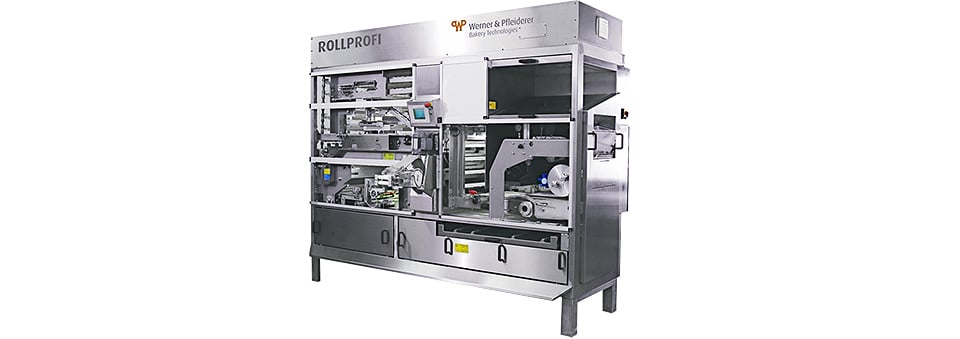

ROLLPROFI Cut Roll System
Compact slit roll baking system with integrated drum moulder
Features
SPECIFICATION
- 4-row system with 600 mm working width
- Integrated drum moulder with rotary valve
- Manual pressure adjustment
- Adjustable moulding belt
- Interchangeable moulding drum (1 chamber drum of your choice)
- 1 Pressure board downstream of the roller (of your choice)
- Pre-proofing time 12 min.
6 min. before the long rolling station + 6 min. between long roller and cutting station - Ribbon drying
- Maintenance-free ribbon chain with automatic tensioning
- Variable depositing unit for proofing boards in 3 Euro sizes, 400 x 600 / 580 x 780 / 580 x 980
- Proofing board fixture as a drawer
- Intensive degermination station
- Operator side left
- Siemens S7 touchscreen control
OPTIONS
- Air conditioning
- Discharge belt at the side
- Exhaust air ventilator for correction of the proofing cabinet climate with continuous operation
- Pressing station instead of cutting station
- Shelf for 2 pressure boards
- Depositing unit with end position change
- Proofing board fixture as plank push-in shelf
- Double-intensity degermination
- Increased system height by 50 or 100 mm
- Laterally movable system variant
- Collision protection on operator side
- Further chamber drums for variable weight ranges
- 5-row divider
- Final proofing cabinet
- Various pressure boards for the production of
– Slit rolls
– Breadsticks and baguette rolls
– Cylindrical products
– Smooth round rolls
– Hot dog, etc.
Products
Products
- Hard rolls
- Smooth round rolls
- Long-rolled rolls
- Twin products
Capacity
- 30 – 85 gr (depending on the number of rows and the design of the products)
- max. 3,750 pcs./h
Added Value
BENEFITS
- WP Hygiene concept
- Energy-efficient system operation
- Easy operation
- Product-specific conditioning gentle on the dough
- Rolls in perfect craftsmanship quality
- Integrated drum moulder with proven dividing principle in the Multimatic
- Compact design – space-saving
- Product diversity thanks to
– adjustable cutting station
– interchangeable pressure boards - Variable capacity for optimum proofing und resting times
- Use of commercially available proofing boards thanks to the variable depositing unit
- Touch screen control
- Optimum hygiene concept
– Stainless steel design
– Intense degermination
– Ribbons removable for cleaning
Rollprofi Cut Roll Baking System Datasheet (683.8 KiB, 20 hits)
