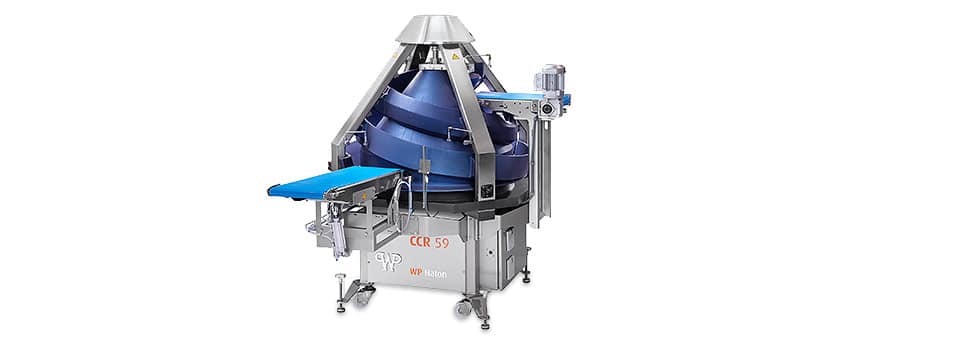

WP Haton CCR 59 Conical Rounder | WP Bakery Group USA, Retail, Wholesale and Industrial Baking Equipment and Food Service Equipment, Shelton, CT USA

Cylindrical Conical Rounder without oil/with oil

The CCR 59 conical rounder is suitable for many common dough types, such as wheat, wheat/rye, multigrain, whole wheat and pizza doughs.

The dough pieces get taken over by the rotating cone and shaped into round dough pieces by the specially-shaped tracks. Because the tracks are mechanically processed, there is a very high precision between tracks and cone, which results in a minimum of dough crumbs.

Features

Basic execution without oil:

  • Cast iron cylinder/cone, teflonized
  • Aluminium tracks, in- and outside teflonized
  • Cone with top bearing
  • Frame steel, nickel coated
  • Cover plates stainless steel, brushed
  • Undercarriage nickel steel with 4 castors, dowel pins and blocking
  • With operation control panel

Basic execution with oil :

  • Cast iron cylinder/cone, teflonized
  • Aluminium tracks, in- and outside teflonized
  • Cone with top bearing
  • Frame steel, nickel coated
  • Cover plates stainless steel, brushed
  • Undercarriage nickel steel with 4 castors, dowel pins and blocking
  • With operation control panel
  • 7 oil spraying nozzles on cone
  • Heating

Products

Products

  • Wheat doughs
  • Wheat/rye doughs
  • Multigrain doughs
  • Whole wheat doughs
  • Pizza Doughs

Capacity

  • max. 5,000 pcs/h

Added Value

  • Excellent round moulding result
  • Perfect separation  between dough pieces coming from the divider
  • Minimum of dough crumbs
  • Perfect transfer from dough pieces on the out feed side
  • The combination of cylindrical and conical cone gives a extra long round moulding way, therefore this round moulder works also perfect as an end round moulder
  • Adjustable tracks on infeed cylindrical part
  • Dough pieces are turned half way round moulding process
  • Wide weight range, caused by using different types of tracks

Please send me more information on the:

CCR 59 Conical Rounder

  • Optional Questions

    These questions are optional but answering them will help us direct your request to the people who can help you the most. (Some questions may not apply to your industry.)
  • By clicking submit below, you consent to allow WP Bakery Group USA to store and process the personal information submitted above to provide you the content requested.
  • This field is for validation purposes and should be left unchanged.

  CCR 59 Conical Rounder Data Sheet (765.2 KiB, 278 hits)
