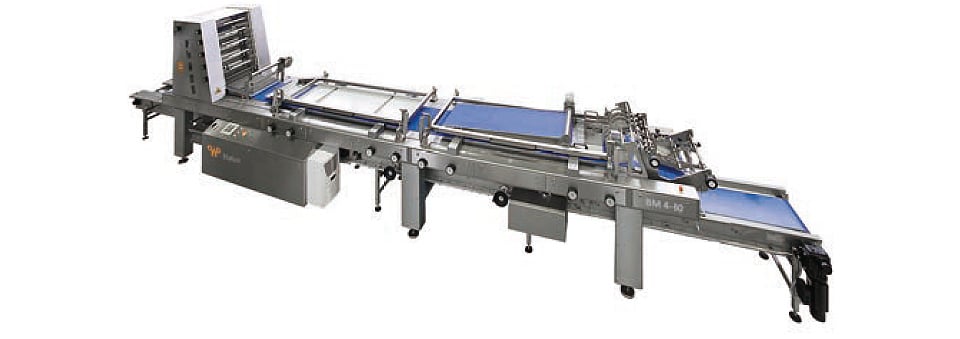

Universal Industrial Long Moulder

Our universal industrial long moulder is suitable for wheat and wheat/rye doughs for high capacity lines from 3,000 – 5,000 pcs/h (depending on dough weight/type)

Features

Basic execution

  • Infeed conveyor
  • Adjustable centering rollers on infeed conveyor
  • Driven pressure roller
  • 4 individually driven sheeter rollers, adjustable in speed by frequency inverter
  • Frame completely stainless steel and aluminium
  • Gear drive on rollers
  • Cover plates stainless steel
  • Moulding bridge, stainless steel, glass bead blasted
  • Aluminium teflonized pressure roller
  • 4 adjustable synthetic sheeter rollers with scrapers
  • Each roller mounted on shaft
  • Adjustable stainless steel curling net
  • Rolling belt with own drive and frequency inverter
  • Hingeable pressure board, adjustable in height with 2 adjustable side guides
  • Pressure board hingeable flat or 1x V
  • Separate frequency controlled belt drive
  • Maximum moulding length 440 mm

Options

  • Moulding frame widened for panner device
  • 4-80 with driven top belt instead pressure board
  • 4-80-L = lengthened version with 2 pressure boards
  • 4-80-L = lengthened version with 1 pressure board and 1 driven top belt or
  • 2 top belts
  • Pre-set counter
  • Air blower on pair of sheeting rollers
  • Flour duster with own drive (wheat/rye). Seeding unit available.
  • Cutting- and twisting device 4 pieces with final moulding station
  • Depositing device, triangle principle with positioning max. 3,600 pcs/h
  • Panner device running with overhead stopper or bottom stopper L=5,000 mm.
    – extra overhead stopper – extra bottom stopper – extra peelboard stopper – tin signalisation
  • Panner device running with magnetic stopper and tin signalisation L=5000 mm.
  • Top belt running in opposite direction
  • Blower on curling belt Blower on driven top belt Driven top belt with 1x V
  • Operator platform at sheeter head
  • Customer specific Blue Box

Products

Products

  • Wheat doughs
  • Wheat/rye doughs

Capacity

  • 3,000 – 5,000 pcs/h (depending on dough weight/type)

Added Value

Advantages

  • Visual control of sheeting process by side windows
  • Driven curling belt
  • Additional space for seeding unit (option)
  • Extra heavy pressure board
  • Easy opening and cleaning of pressure boards
  • Continuous cleaning of sheeter rollers: 2 scrapers per roller pair
  • Adjustable settings of rollers and speed with digital read out
  • Perfect reading of settings for good repeating of products
  • 41/2 pair of rollers with own drive for progressive sheeting of dough pieces
  • Air blowing device on sheeting rollers
  • Direct gear drive on each pair of rollers for clean and silent drive
  • Extreme stabile construction
  • Pinning roller with own drive
  • Sheeting of round dough pieces as well oblong dough pieces (pre moulded)
  • PLC control with touch screen (Siemens 314C TP 700)
