Titan Linear Mixing System
WP Kemper TITAN LINEAR SYSTEM: High-Output Modular Automated Mixing Lines

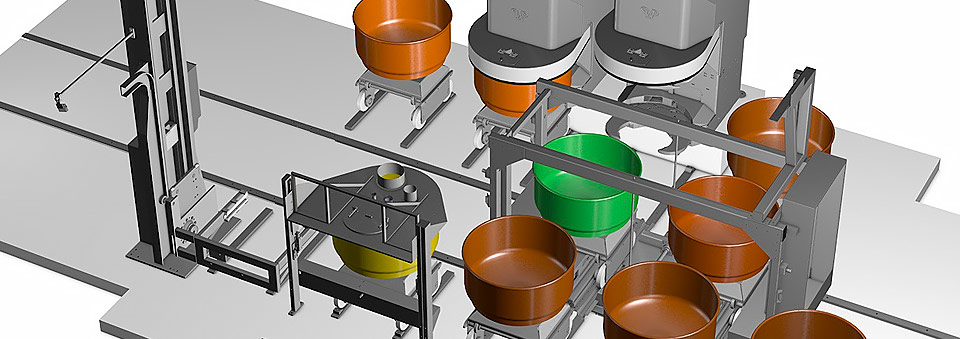

Achieve maximum plant-floor efficiency and absolute formula versatility with the WP Kemper TITAN LINEAR SYSTEM. Engineered specifically for mass-production wholesale facilities, this fully automatic linear mixing line outputs up to a massive 6,400 kg of high-quality dough per hour. The TITAN LINEAR uses an automated rail-bound carriage system to move heavy-duty bowls touchlessly through custom-configured dosing, 3-Zone kneading, and independent resting stations, optimizing continuous factory workflows.
- Variable Dough Resting Management: The intelligent linear system tracks individual batches independently, allowing you to process a wide variety of dough profiles requiring completely different fermentation or relaxation windows simultaneously.
- Massive Industrial Throughput: Designed for grueling 24/7 industrial scaling, easily achieving continuous production volumes ranging from 1,200 kg up to a massive 6,400 kg of finished dough per hour.
- Advanced Multi-Phase Control: Features a centralized digital control architecture (standard for Titan 400 DS configurations) that monitors bearings, motors, and raw energy measurements in real-time.
- High-Yield 3-Zone Mixing Action: Incorporates Kemper’s proprietary geometric spiral and guide bar physics, creating controlled air turbulence that infuses maximum oxygen for dry, highly processable dough structures.
- Integrated CO2-Cooling Options: Supports direct connection to automated CO2-cooling or ice-dosing systems to carefully manage batch friction and prevent premature yeast activation during heavy industrial cycles.
- Laser-Guided Safety Carriage: The high-speed motorized bowl carrier is equipped with integrated fail-safe laser arrays that automatically halt track movement if an operator enters the path.
- Clean Transfer Technology: Built with a specialized mechanical bowl-scraping device on the column lifter and an integrated dough-catchment plate to guarantee a clean, waste-free transfer into your intermediate hoppers.
| Primary Mixing Engine | Multiple upgraded WP Kemper TITAN Spiral Mixer units (Single or Double Spirals) |
| Automated Material Dosing | Standardized software interfaces for pneumatic dry/wet ingredient dosing |
| Dough Discharging Handling | Integrated portioning hoppers paired with continuous-feed transport conveyor belts |
| Sanitation Station | Automated, floor-accessible structural bowl cleaning and wash stations |
| Downstream Compatibility | Feeds directly into high-capacity automated lines like the TEWIMAT Dough Divider |
Titan Linear Stripping Device
⚠️ Plant Floor Customization Note: Every TITAN LINEAR SYSTEM is a bespoke engineering project. The entire track layout, number of active mixing cells, and intermediate container resting zones can be custom-tailored to optimize your client’s exact physical manufacturing footprint and workflow requirements.
Explore our complete catalog of commercial and industrial spiral dough mixers, or call us at 203-929-6530 today.
WP Bakery Group USA has supplied high-efficiency German bakery equipment to commercial and industrial bakeries across the US and Canada for over 50 years, including commercial dough mixers and bowl lifters.
