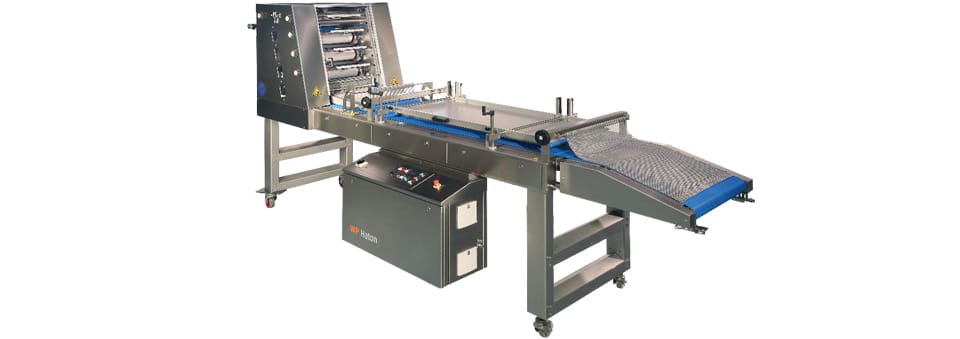

BM 3-40 Sheeter Moulder

WP Haton BM 3-40 Long Moulder | WP Bakery Group USA, Retail, Wholesale, Commercial Bakery Equipment and Industrial Bakery Equipment, Shelton, CT USA

Simple Operation and Easy Cleaning

THE BM moulder range belongs to the key products of WP Haton in Industrial Bakeries. Since its introduction, hundreds of machines were delivered and supplied in various markets worldwide.

Features

Basic execution

  • Infeed conveyor with adjustable diabolo centering rollers
  • Adjustable driven, synthetic pressure roller
  • 3 sheeting rollers with fixed drive and scrapers, adjustable in sheeting thickness (1-25 mm)
  • Continuous cleaning of sheeting rollers through tilting scrapers
  • Drying device on all sheeting rollers, front and back
  • Visual control of sheeting process
  • Sheeting frame made of aluminium
  • Separate curling belt, adjustable in speed
  • Adjustable stainless steel curling net on curling belt
  • Pressure board, adjustable in height with adjustable
  • Teflon coated side guides
  • Maximum moulding length 560 mm
  • Cover plates stainless steel
  • Moulding bridge stainless steel, glass bead blasted with separate belt drive
  • Electrical switch box stainless steel

Options

  • Operation side sheeting head and moulding bridge left or right
  • Central switching
  • Pre-set counter
  • Adjustable, pneumatic pressure controlled sheeting roller
  • Air on separate curling belt
  • Driven top moulding belt, running against dough flow, instead of pressure board
  • Air on driven top moulding belt running against dough flow
  • Flour duster with own drive and photo-cell for dough detection
  • Decoration station
  • Twister (Swing Away) (4 pieces)
  • Twister-device (6 pieces)
  • Declining nose, when depositing on a panning conveyor
  • Straight nose, when depositing on a retarding belt
  • Panning conveyor
  • Overhead stopper
  • Bottom stopper
  • Peelboard stopper
  • Tin signalisation
  • Panning conveyor running with magnetic stopper
  • Customer specific Blue Box

Products

Products

  • Wheat doughs
  • Wheat/rye doughs

Capacity

  • 3,000 pcs/h (depending on dough weight/type)

Added Value

Benefits

  • Simple in operation, easy read out and adjustments
  • Easy cleaning and accessibility of all necessary parts
  • 1:1 replaceability/retrofit package for existing machines
  • Sturdy design with a long machine life
  • Visual control of total process
  • High performance in sheeting and moulding
  • Each roller equipped with quick lock scraper for easy cleaning
  • Non sticking heavy duty sheeting rollers
  • Clear read out of settings for a precise adjustment of sheeter roller settings
  • No air filters
  • Catch pan underneath sheeter head
  • Space between the sheeter rollers for rest time during sheeting
  • Each roller pair equipped with individual blower for constant drying of sheeter rollers
  • Sheeter head includes high speed curling belt and infeed conveyor and can be delivered as a retrofit packag

  BM 3-40 Sheeter Moulder Data Sheet (827.3 KiB, 5 hits)
